Global solution

Optimal part delivery

to the Asycube flexible feeder!

Asyfill smart hopper

Specifically designed for flexible feeding

Revolutionizing part feeding, the Asyfill smart hopper completes Asyril’s intelligent solution. The combination of Asycube feeder, EYE+ smart control system and Asyfill ensures a high-performance flexible feeding process. Integrating Asyfill is very simple, and the parameters are set at recipe level on EYE+ Studio or Asycube Studio, so you can change series without any manual intervention on the hopper. Its compact and integrated controller reduces hardware, cabling and footprint in your production machine, providing a more efficient and customized solution.

Consistent dosing

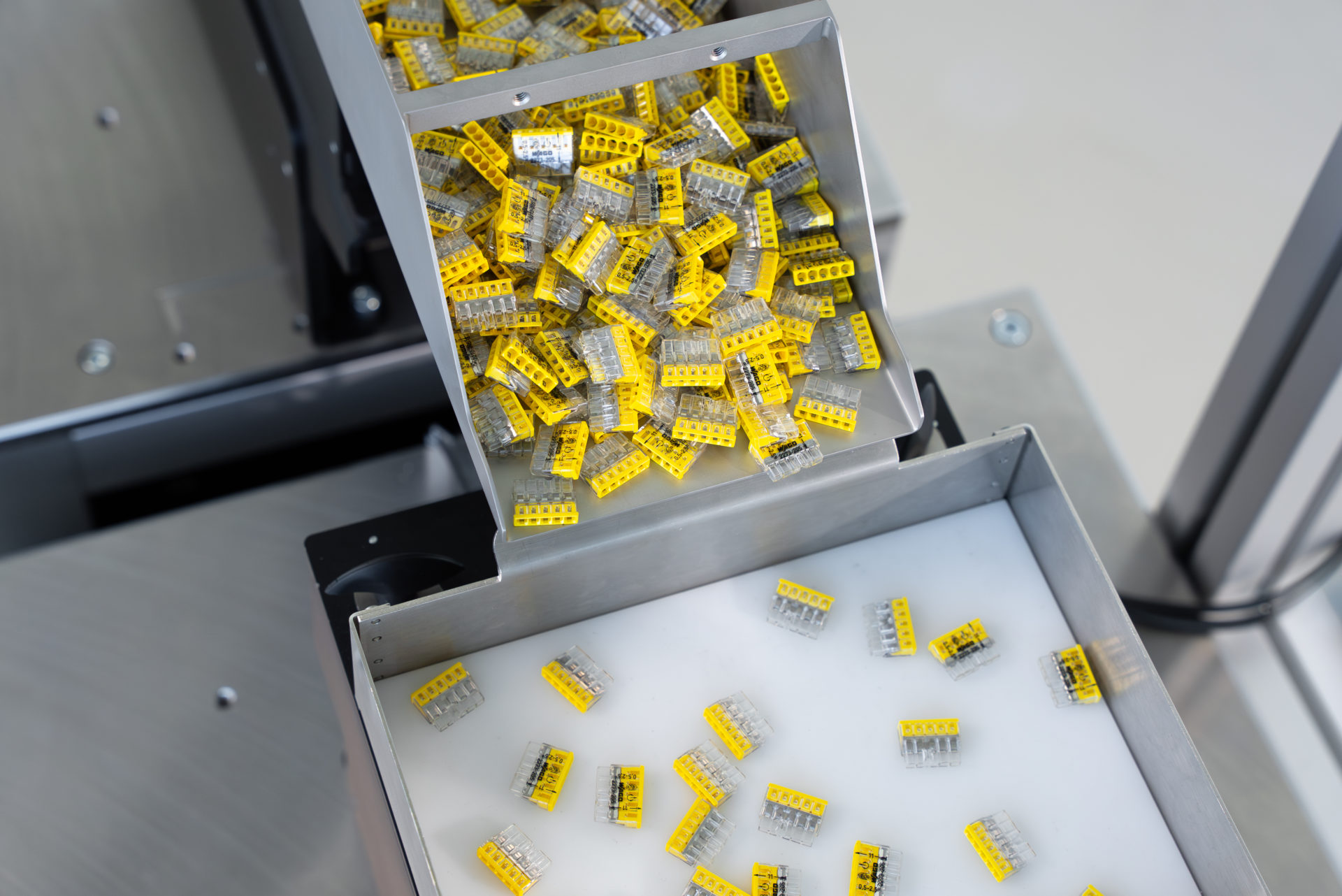

Thanks to an integrated smart sensor that uses a microelectromechanical (MEMS) vibration system control, Asyfill regulates the number of parts delivered to the Asycube flexible feeder. The power of the amplitude is constantly adapted to guarantee an optimum number of parts on the feeder, regardless of the quantity of parts in the hopper.

International compatibility with 24 VDC operation

Operating at 24 VDC, the Asyfill smart hopper does not need a frequency converter. By choosing a single 24 VDC product, you avoid the confusion of voltage and frequency variants, making Asyfill an ideal solution for customers anywhere in the world.

Generate a customized bill of material in just a few clicks

Simple and intuitive to use, the Asyril flexible feeding configurator will analyze your requirements and recommend the ideal Asyfill smart hopper, along with other products and accessories tailored to your needs. Get started with your project and request an official quote.

Configure your solution

Asyfill benefits

  • Constant regulation of parts distributed onto the Asycube feeder
  • Simple integration
  • Amplitude set directly in Asycube Studio or EYE+ Studio
  • Compact solution without external controller
  • International compatibility with 24 VDC operation

Asyfill benefits

  • Constant regulation of parts distributed in the Asycube feeder
  • Simple integration
  • Amplitude set directly in Asycube Studio or EYE+ Studio
  • Compact solution without external controller
  • International compatibility with 24 VDC operation

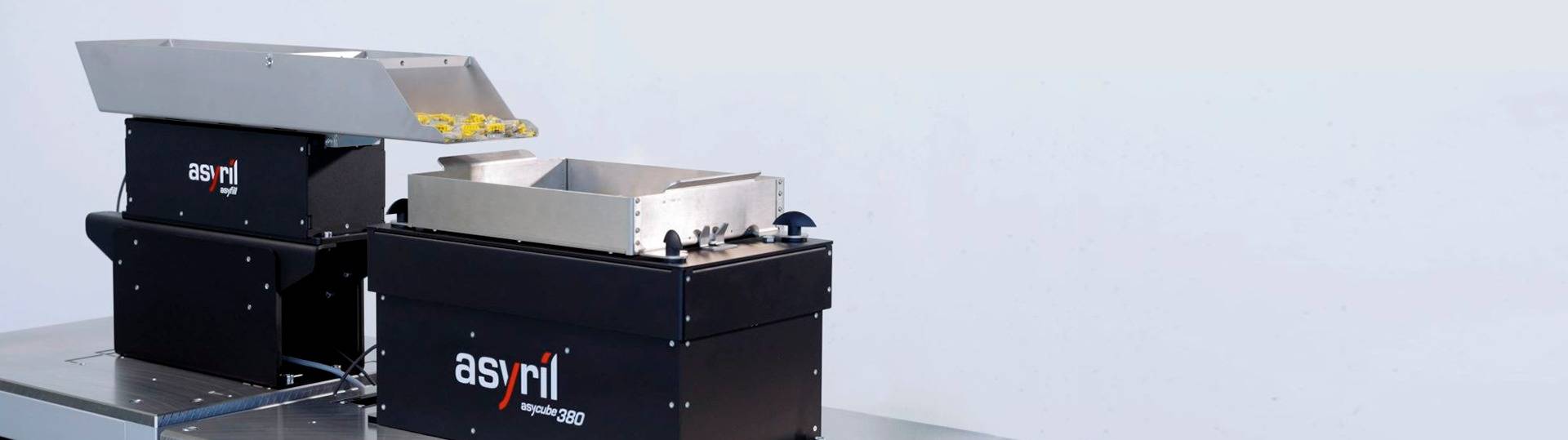

Pairing with the Asycube flexible feeder

The different variants of the Asyfill smart hopper can be mounted on the short or long side of the Asycube flexible feeder. Discover which Asyfill hopper can be used in conjunction with which Asycube feeder in single part feeding applications.

Actuator base S M L
Container 1L 2L 3L 7L 14L
Asycube 240 *
Asycube 380 *
Asycube 530

* Possible only on the long side of the Asycube feeder

Technical details

Asyfill

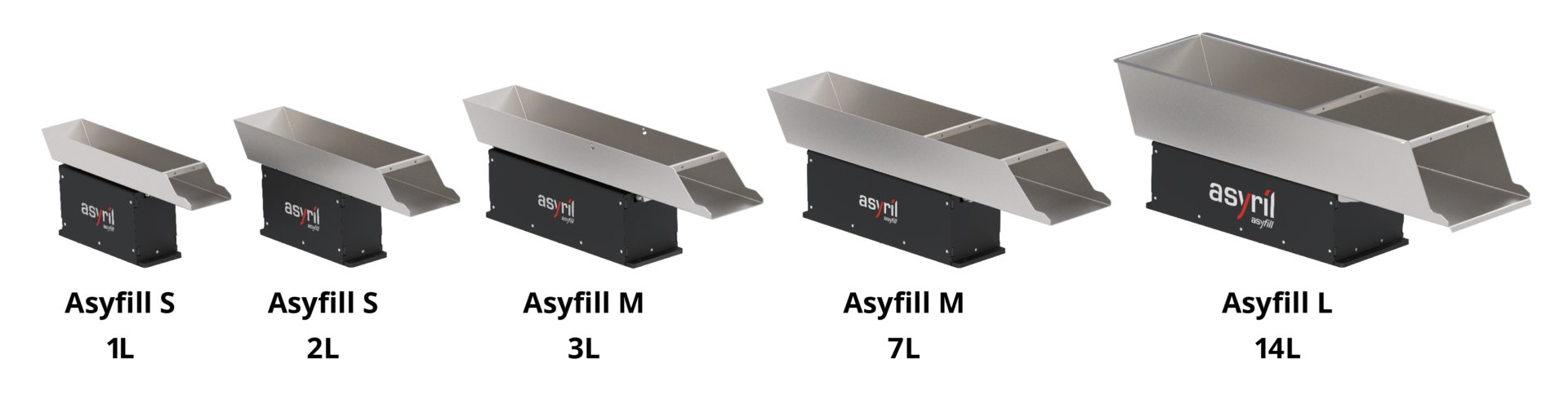

Depending on the parts you need to singulate, choose one of the five Asyfill smart hopper sizes – ranging from 1 to 14 liters. The vibration frequency is pre-tuned, and calibration can be easily performed on-site thanks to the integrated smart sensor. When using Asycube 380 or 530 flexible feeders, the modular fixation kit is required to install Asyfill M or L at the ideal height.

Presentation video Datasheet CAD

Technical description

Power supply

24 VDC

General dimensions (mm)

Asyfill S 1L: 88x433x191
Asyfill S 2L: 112x484x206
Asyfill M 3L: 124x657x212
Asyfill M 7L: 159x705x231
Asyfill L 14L: 254x794x276

Weight (kg)

Asyfill S 1/2L: 4.2
Asyfill M 3/7L: 11.6
Asyfill L 14L: 19.1

Compatible accessories

Kit de fixation modulaire

Asyfill slide

Asyfill silo
