How to prepare medical components meticulously for quality-inspection?

In high-precision manufacturing in the medical industry, orthopedic implants such as bone screws and fracture fixation plates are manufactured with extremely tight tolerances to ensure proper fixation, alignment, and long-term performance inside the human body.

During dimensional inspection, even small particles such as dust, machining residue, oil, or coolant can affect the accuracy of measurements on critical features including diameters, threads, holes, countersinks, and surface finishes. Components must therefore undergo a cleaning process, typically air blowing or particle removal or even more complex processes, prior to inspection.

To ensure reliable measurement results, parts must also be presented in a precise and repeatable position, allowing complete inspection from all sides. Stable orientation and controlled handling are essential to access all critical geometries without damaging the implant surface.

Accurate cleaning, positioning, and presentation are key to guaranteeing measurement reliability, inspection repeatability, and final implant quality.

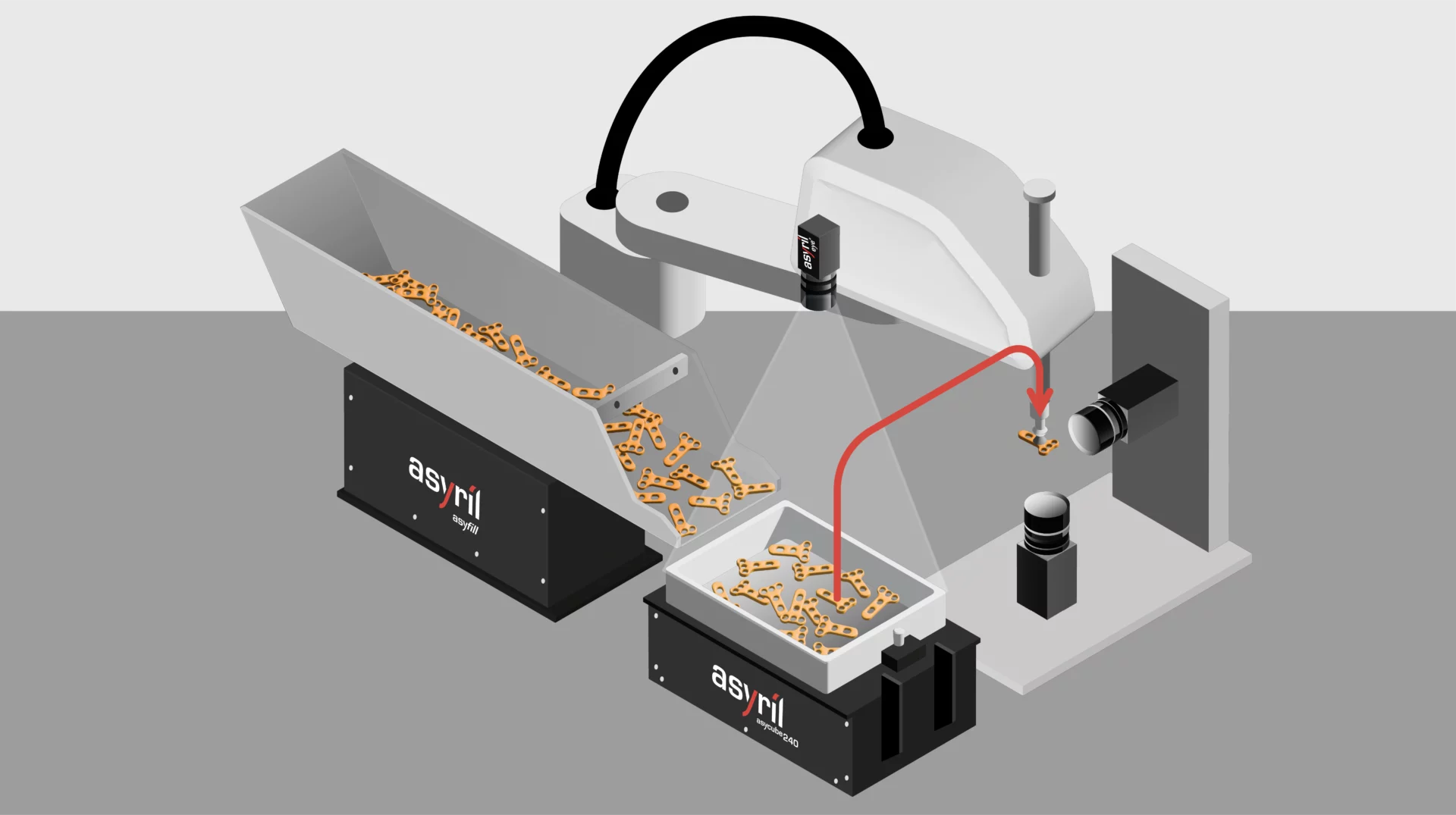

Asyril’s flexible feeding solutions automate the singulation, orientation, and presentation of medical components for quality inspection processes.

Powered by Asycube and EYE+, the system delivers precise and repeatable part positioning, ensuring that each component is consistently presented to downstream inspection equipment. Smooth vibrations combined with a plastic platform also ensure that these sensitive components remain undamaged.

Manufacturers benefit from reduced manual intervention, rapid changeovers, and efficient inspection of multiple product variants within regulated production environments.
